Description

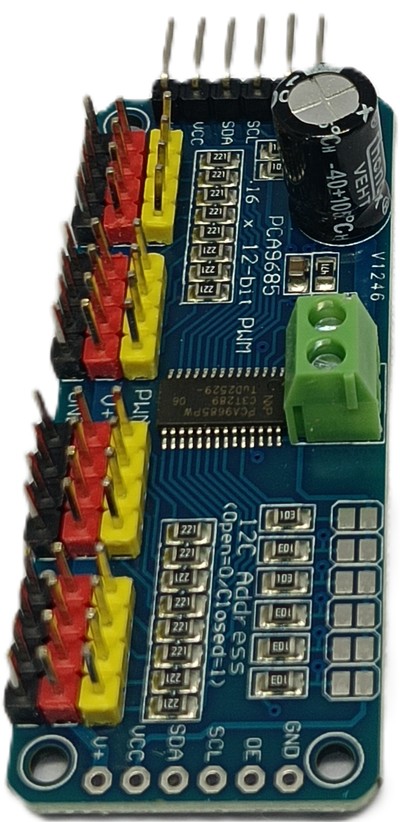

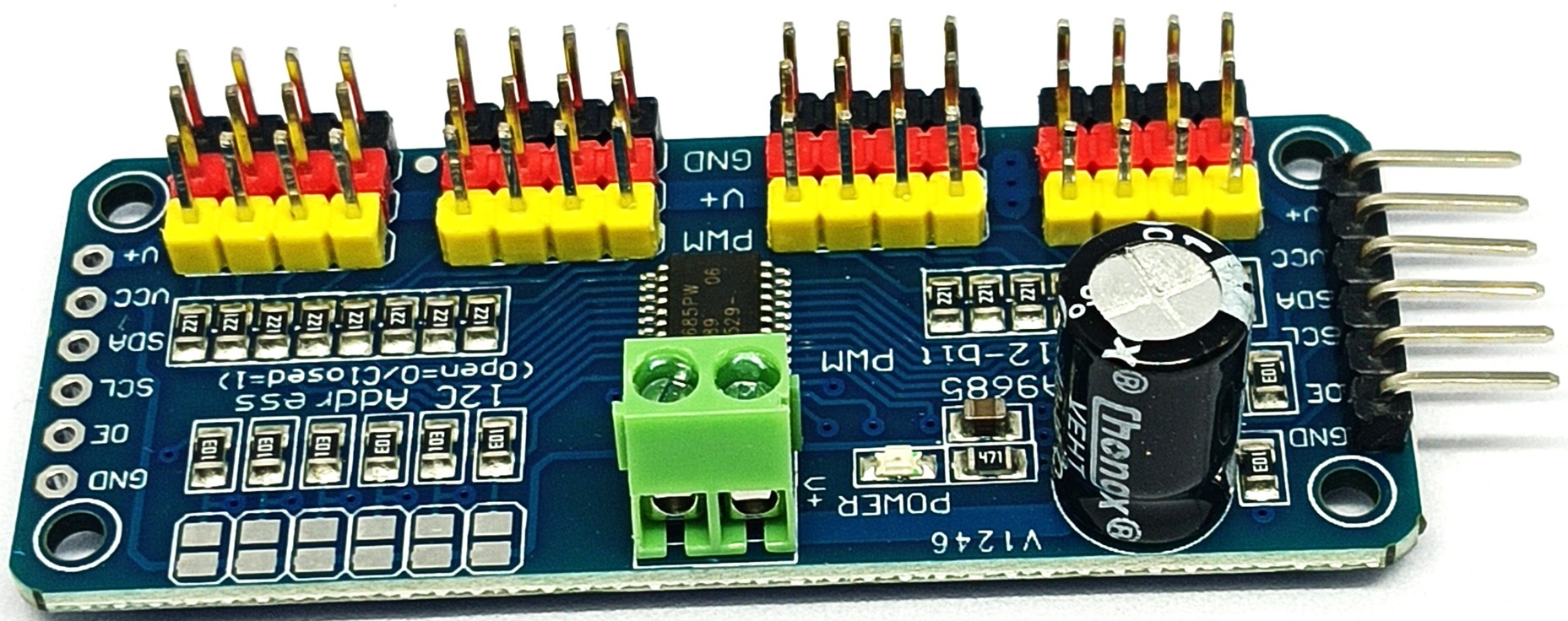

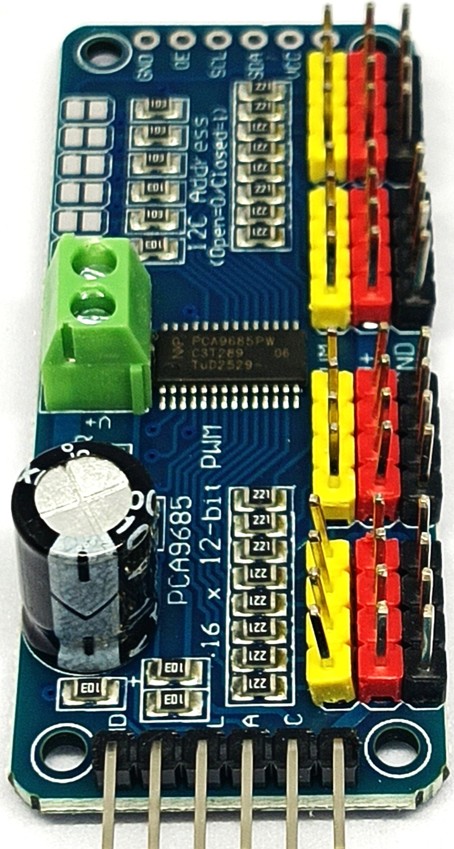

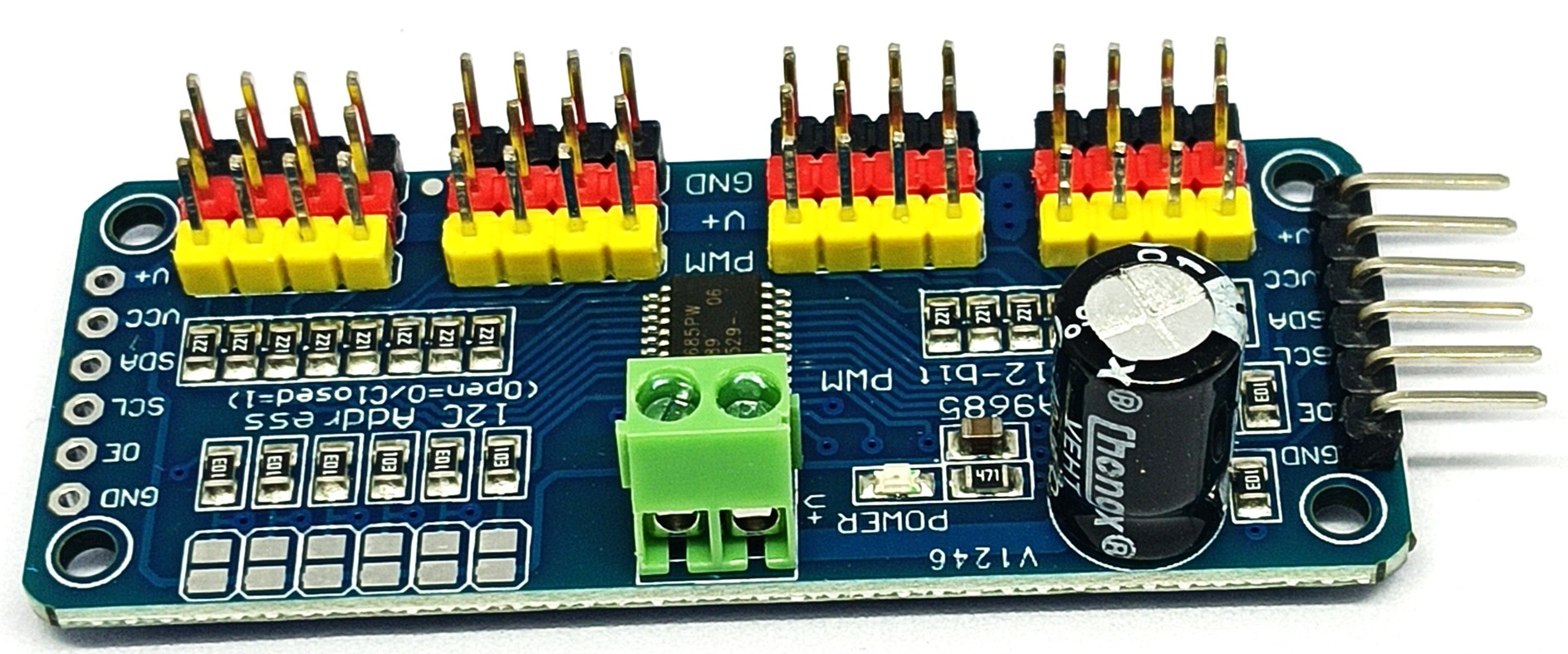

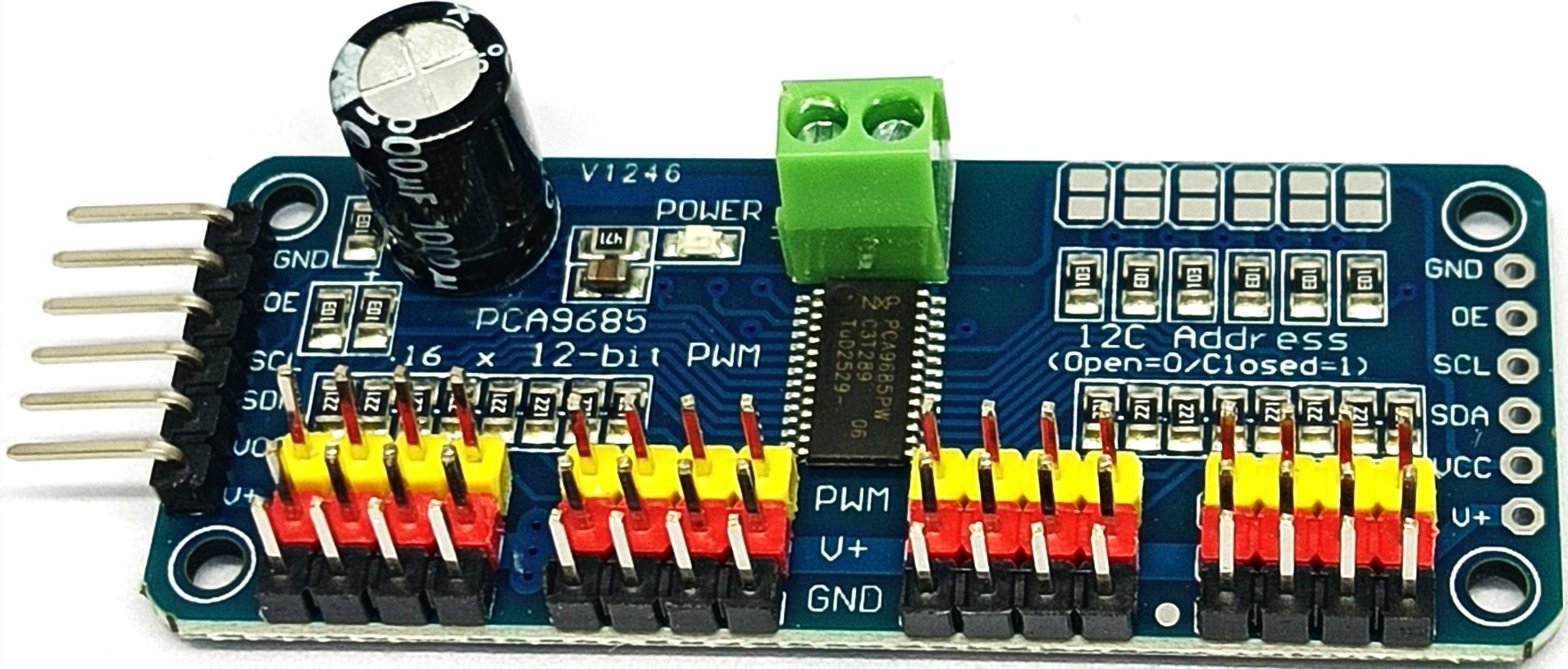

PCA9685 16-Channel 12-Bit PWM Servo Motor Driver Module (I2C Interface)

The PCA9685 16-Channel PWM Servo Motor Driver Module is a powerful and scalable solution for controlling multiple servo motors, LEDs, or PWM-driven devices using just two I2C pins. Designed for robotics, drone systems, IoT automation, and embedded control applications, this module allows you to expand your project without overloading your microcontroller.

If you are building robotic arms, quadruped robots, pan-tilt camera systems, or multi-servo automation systems, the PCA9685 module makes complex motion control simple and efficient.

---

Why You Need a Dedicated PWM Driver

Most development boards have limited PWM pins. When you try to control multiple servos directly, you may face:

• Jittering motors

• Timing instability

• Processor overload

• Limited expandability

The PCA9685 solves this by offloading PWM generation from your microcontroller and generating stable signals independently.

---

Key Features & Benefits

🔹 16 Independent PWM Channels

Control up to 16 servo motors simultaneously using a single I2C connection.

🔹 12-Bit Resolution (4096 Steps)

Provides ultra-smooth and precise motion control, ideal for robotics and drone stabilization mechanisms.

🔹 I2C Interface (Only 2 Wires Required)

Uses SDA and SCL pins, freeing up valuable GPIO pins for sensors like:

• <a href=”/product/mq2-gas-sensor-module/”>MQ2 Gas Sensor Module</a>

• <a href=”/product/oled-display-0-96-inch/”>0.96” OLED Display</a>

• <a href=”/product/lora-module/”>LoRa Modules</a>

🔹 Stackable Design (Up to 62 Modules)

Supports configurable I2C addresses, allowing you to connect up to 62 boards on the same bus. That means control of up to 992 servo outputs from a single controller.

🔹 Dedicated External Power Supply

Servo motors require higher current. This board includes a separate power terminal (5V–6V recommended) to prevent damage to your microcontroller.

---

Applications

The PCA9685 servo driver is widely used in:

• Robotic arms and manipulators

• Hexapod and quadruped robots

• Drone camera gimbal systems

• Pan-tilt surveillance systems

• Automation projects

• STEM and engineering learning kits

• IoT motion control systems

Pair it with high-torque servo motors for advanced robotics or micro servos for compact automation projects.

---

Technical Specifications

• PWM Channels: 16

• Resolution: 12-bit (4096 steps)

• Communication Protocol: I2C

• Logic Voltage: 3.3V – 5V

• Servo Voltage: 5V–6V (External power recommended)

• Default I2C Address: 0x40 (Configurable)

• Adjustable PWM Frequency

• Onboard clock for stable PWM generation

---

How It Works

The PCA9685 receives commands from your microcontroller via I2C. It then generates accurate PWM signals independently for each channel. Because PWM generation is handled by the onboard controller chip, your microcontroller remains free for:

• Sensor data processing

• Wireless communication (WiFi / LoRa)

• Cloud connectivity (AWS IoT, MQTT)

• Real-time control logic

This makes it ideal for advanced IoT-based robotics systems.

---

Important Usage Guidelines

⚠ Always use an external 5V–6V power supply for servos.
⚠ Do not power multiple servos directly from Arduino 5V pin.
⚠ Ensure common ground between servo power supply and microcontroller.
⚠ Use adequate power supply based on servo current rating.

---

Compatible With

• Arduino UNO, Mega, Nano

• ESP32 / ESP8266

• Raspberry Pi

• STM32

• Other I2C-supported microcontrollers



Package Includes

• 1 × PCA9685 16-Channel PWM Servo Driver Module
  (Header pins may be pre-soldered depending on stock batch)
