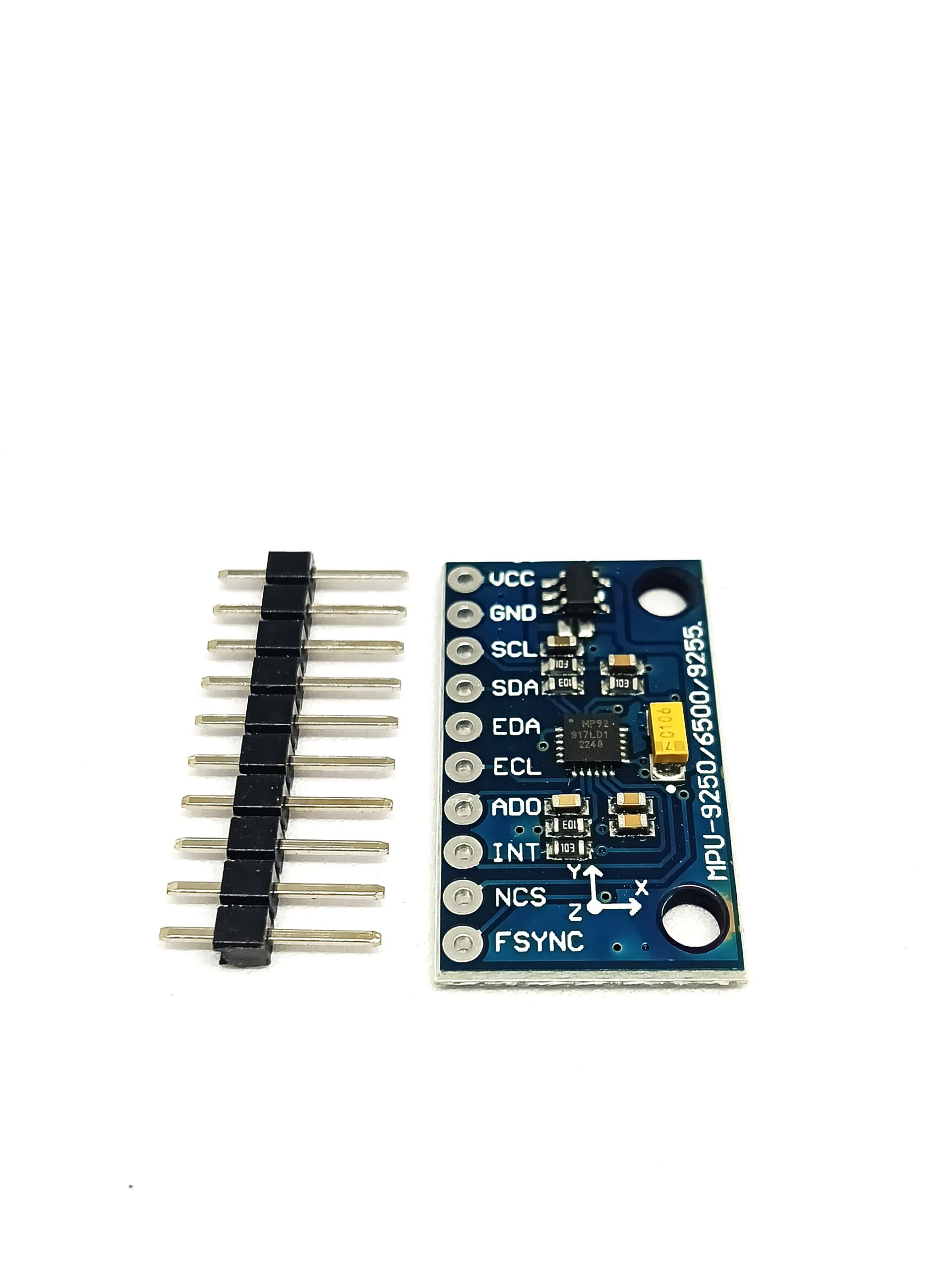

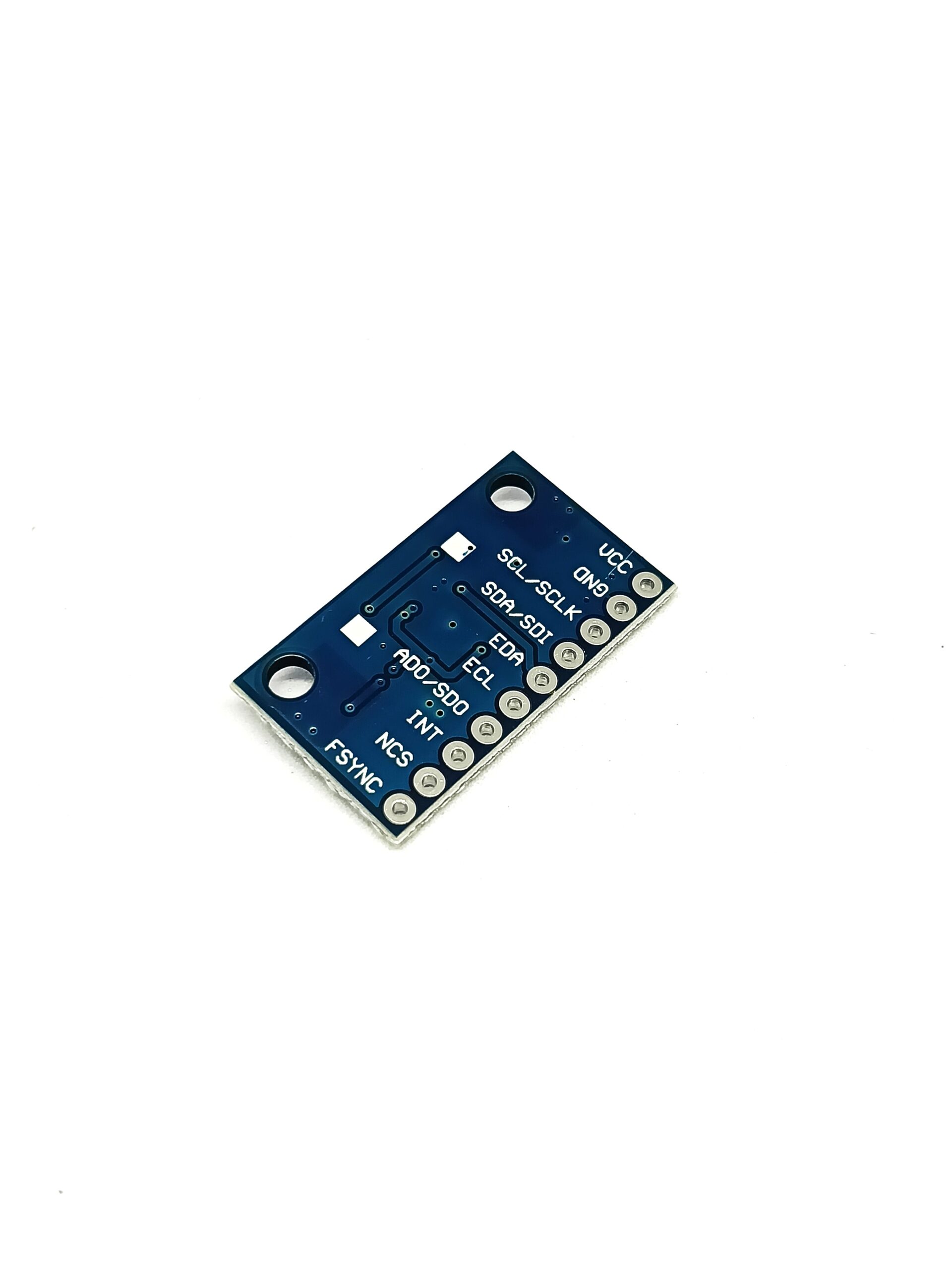

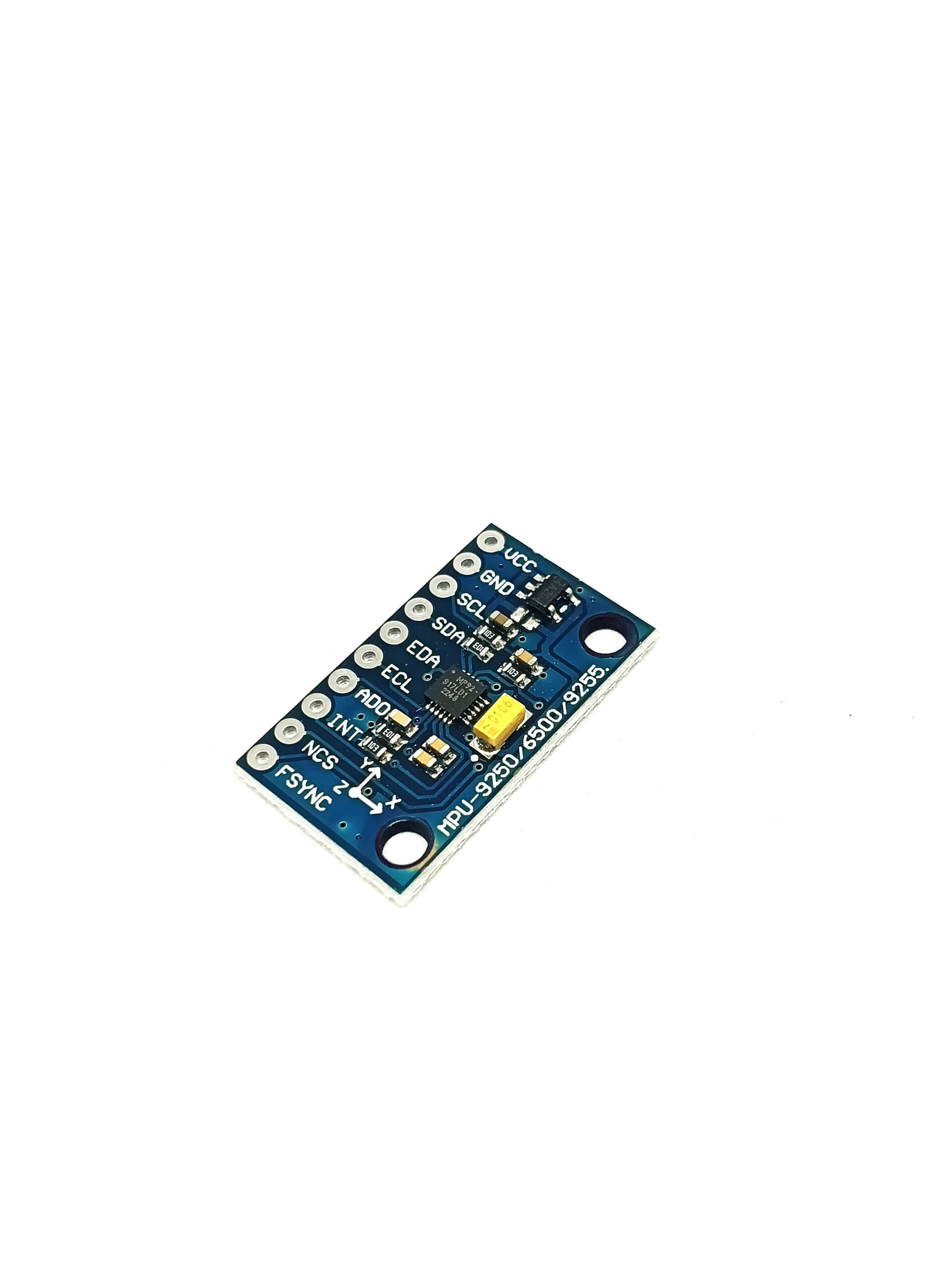

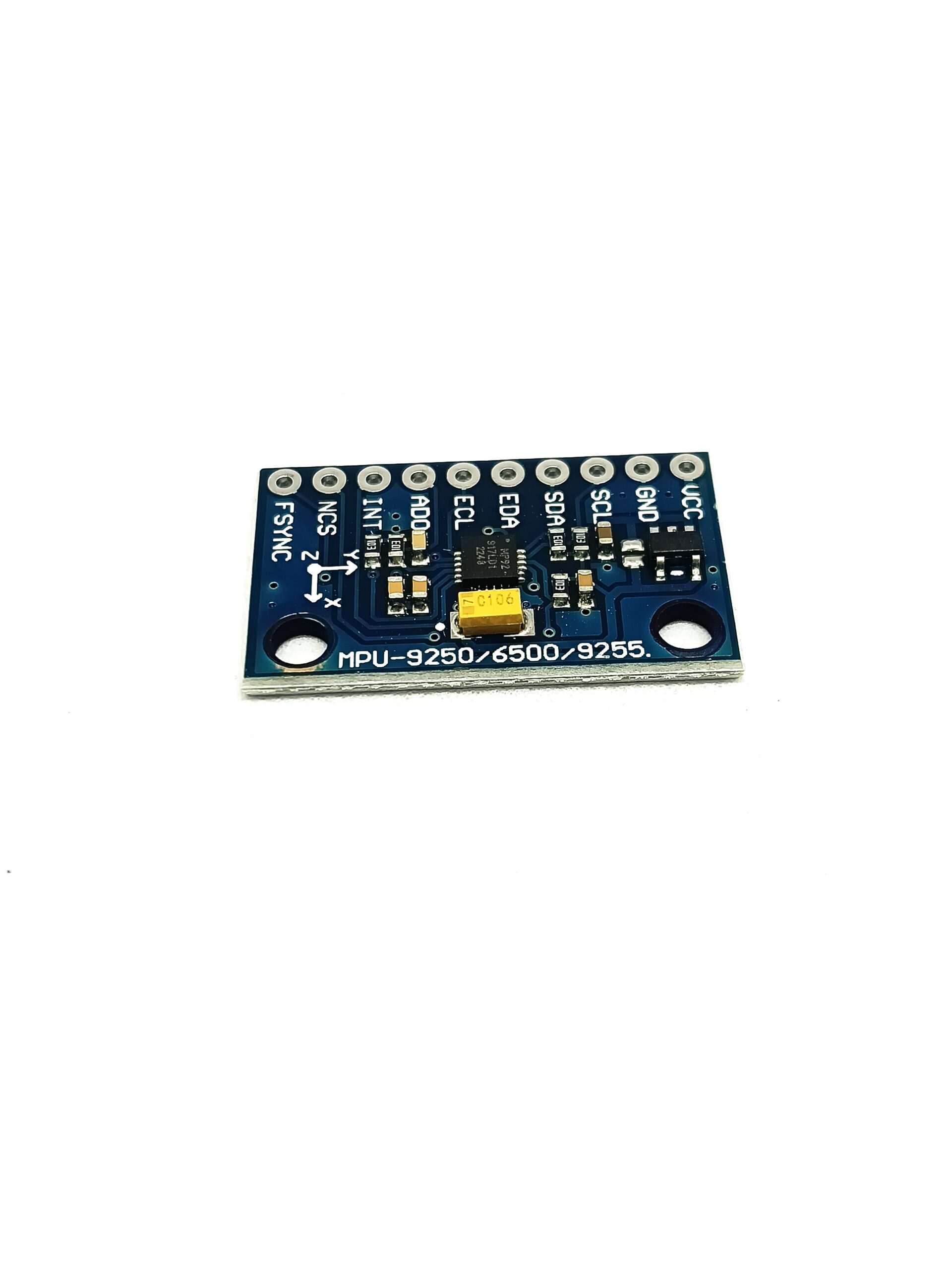

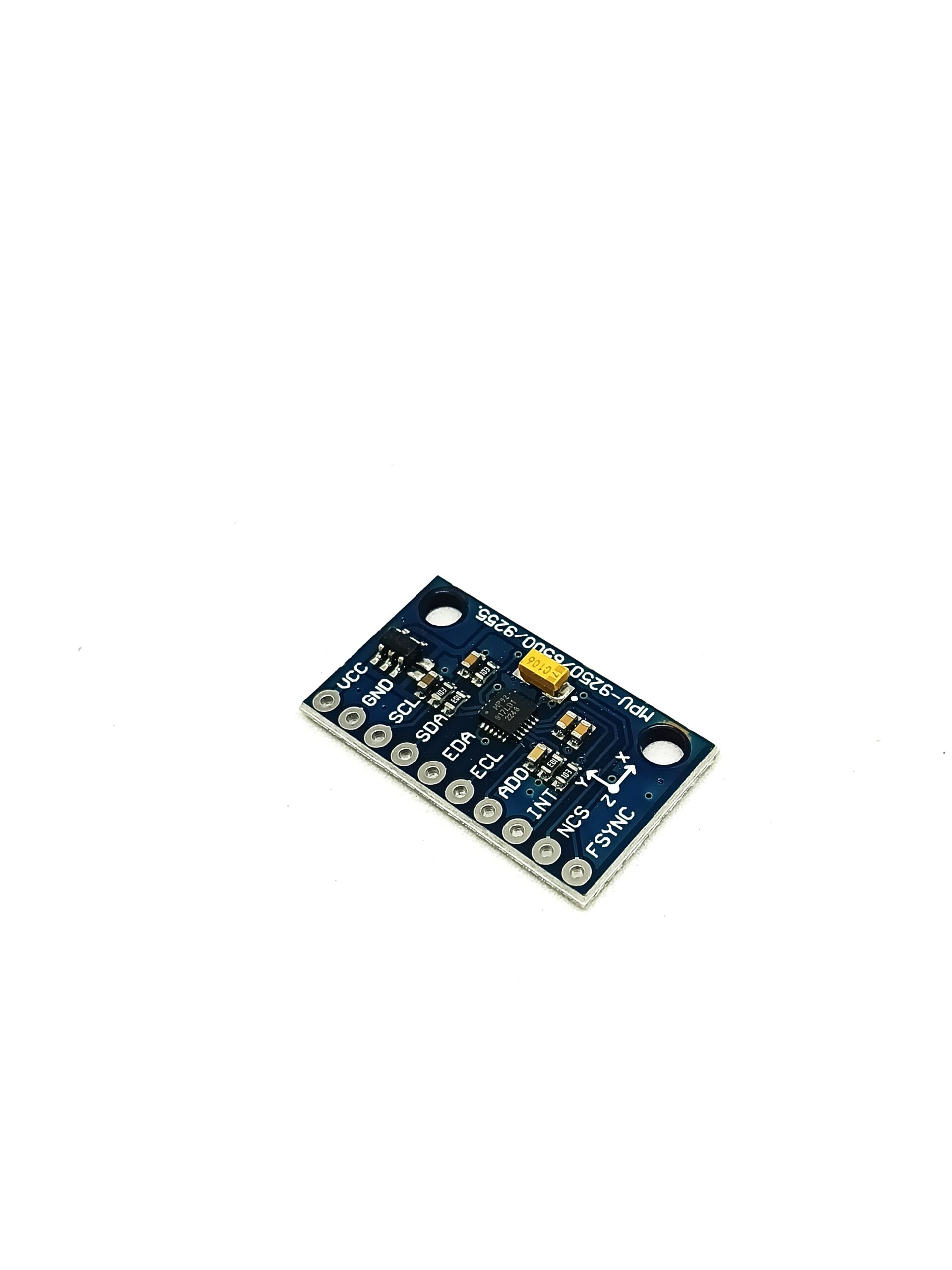

MPU-9250 6-Axis Gyroscope & Accelerometer Module – Arduino, ESP32 & IoT Compatible

Description

MPU-9250 6-Axis Gyroscope & Accelerometer Module – Reliable Motion Sensing for Arduino & ESP32

The MPU-9250 6-Axis IMU Sensor Module is a high-performance motion sensor that integrates a 3-axis accelerometer and a 3-axis gyroscope into a compact and efficient module. This variant is supplied without the magnetometer, making it ideal for applications where heading/compass data is not required.

This sensor is widely used in drones, robotics, self-balancing vehicles, motion tracking systems, and IoT projects where accurate acceleration and rotation data are essential. With its digital I²C/SPI interface, the MPU-9250 works seamlessly with Arduino, ESP32, ESP8266, Raspberry Pi, and STM32 boards.

---

Key Features

• 6-Axis Motion Sensing

  • 3-axis accelerometer

  • 3-axis gyroscope

• High Accuracy & Stability

• No Magnetometer (ideal for gyro + accel only applications)

• Digital I²C / SPI Communication

• Low Power Consumption

• Compact Module Design

---

How It Works

• The accelerometer measures linear acceleration and gravity, useful for tilt and motion detection.

• The gyroscope measures angular velocity, enabling precise rotation and orientation tracking.

By combining accelerometer and gyroscope data using sensor fusion algorithms, stable motion data can be obtained for flight control, balancing, and motion analysis.

---

Applications

• Drone flight controllers (without compass)

• Robotics and self-balancing robots

• Motion tracking systems

• Wearable electronics

• IoT motion monitoring

• Educational IMU projects

---

Technical Specifications

• Sensor Type: 6-Axis IMU (Accel + Gyro)

• Accelerometer Range: ±2g, ±4g, ±8g, ±16g

• Gyroscope Range: ±250, ±500, ±1000, ±2000 °/s

• Interface: I²C / SPI

• Operating Voltage: 3.3V (5V tolerant modules)

• Operating Temperature: –40°C to +85°C

---

Why Choose This VIG MPU-9250 Variant?

This VIG MPU-9250 6-axis module is perfect for projects that need stable acceleration and rotation data without compass complexity. It is cost-effective, easier to calibrate, and ideal for high-speed motion applications such as drones and robots.

---

Summary

The MPU-9250 6-Axis Gyroscope & Accelerometer Module delivers reliable motion tracking without magnetometer support. If your application does not require directional heading, this sensor is a smart and efficient choice for Arduino, ESP32, robotics, and drone projects.
