Description

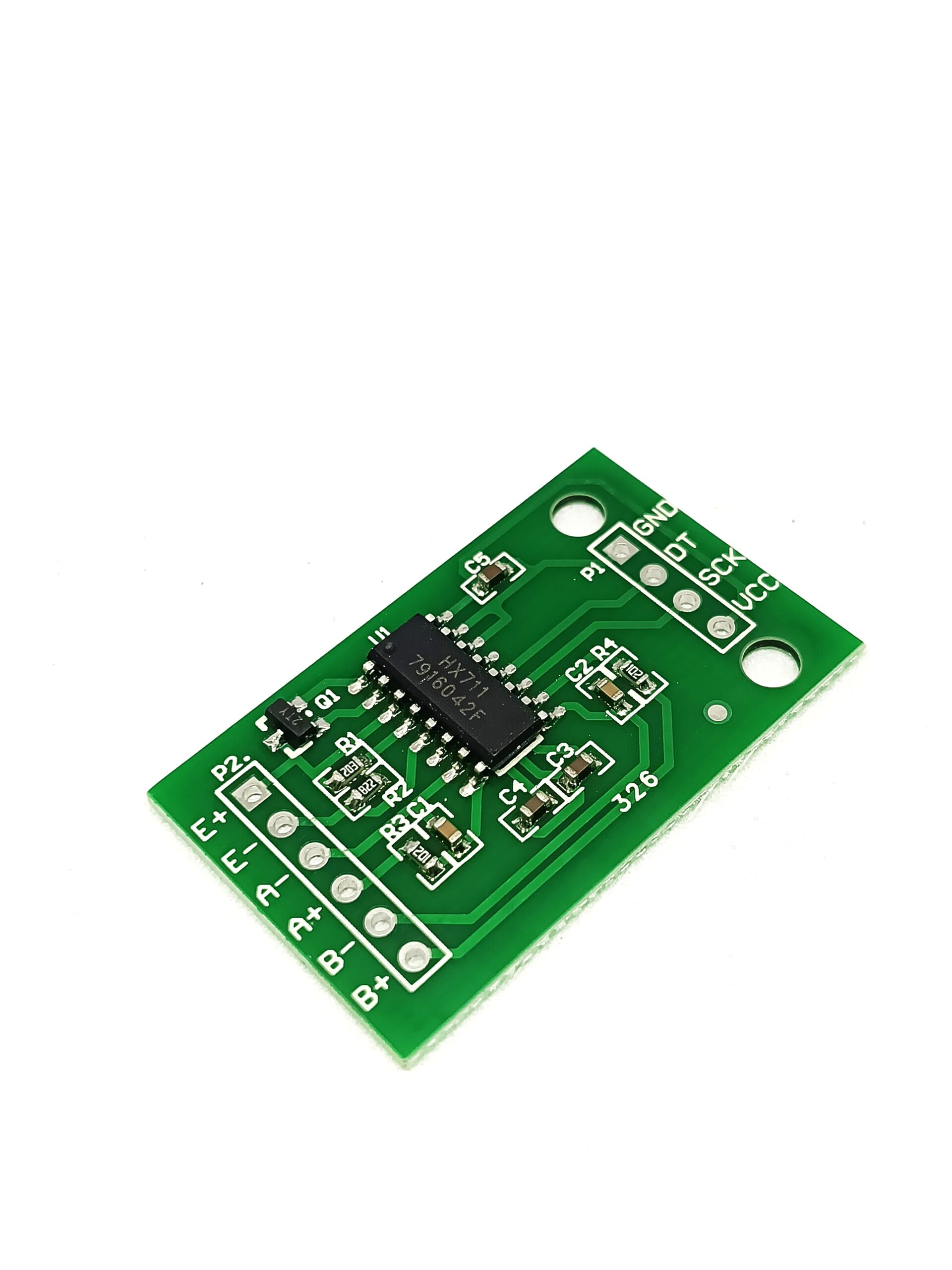

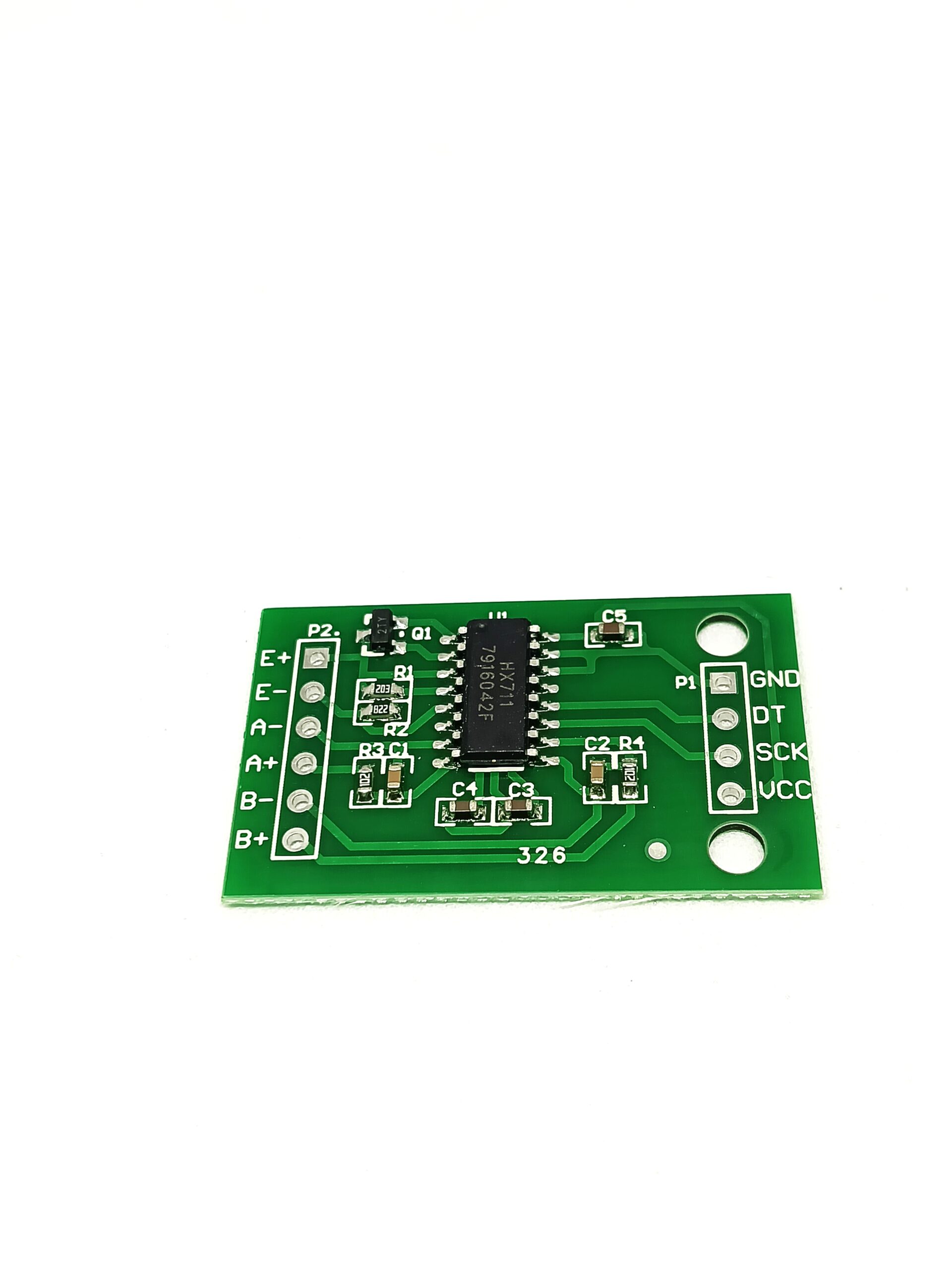

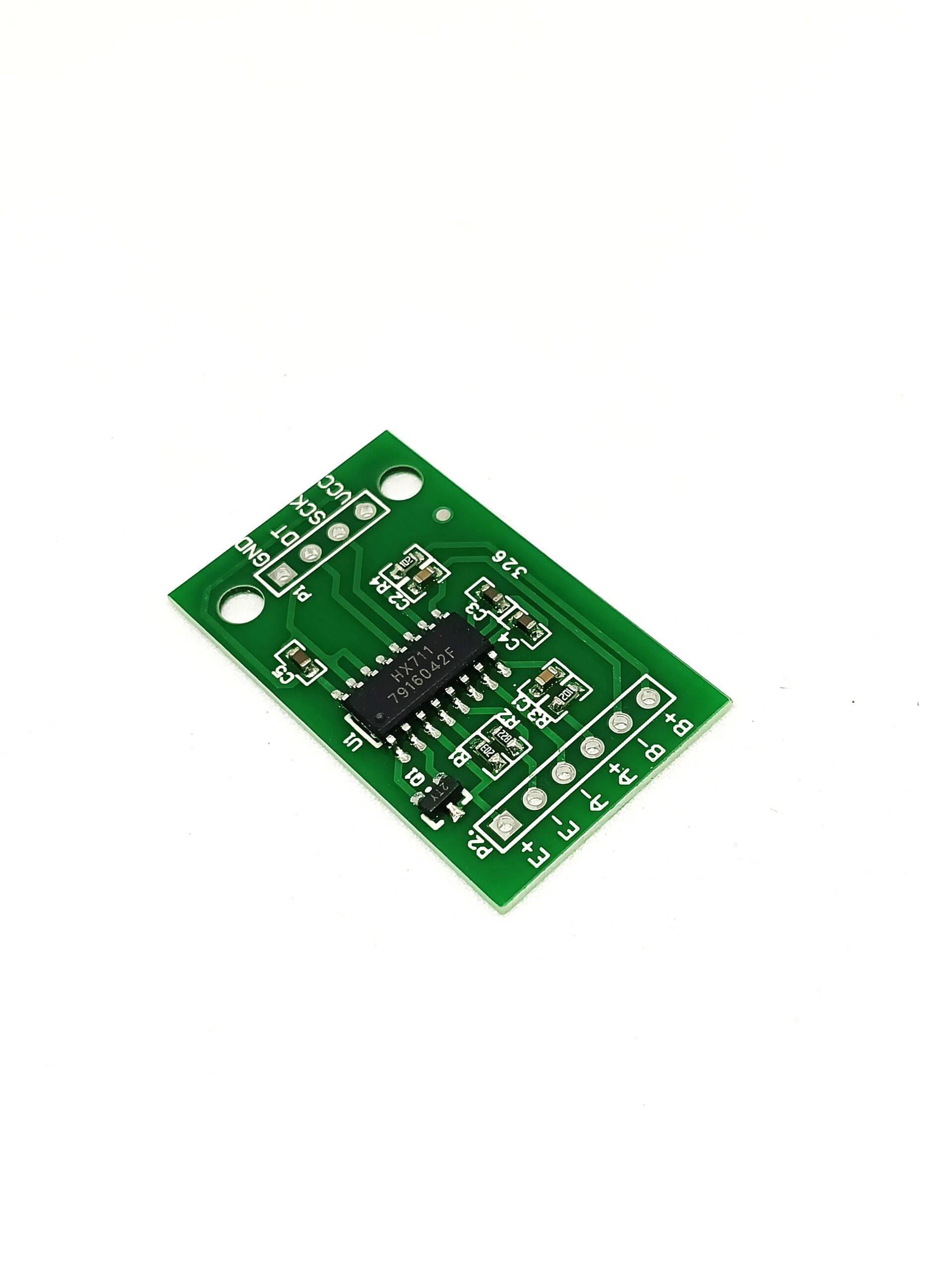

HX711 Weighing Sensor Module – Powerful 24-Bit Precision Load Cell ADC

HX711 Weighing Sensor Module is a high-precision 24-bit analog-to-digital converter (ADC) designed specifically for accurate weight and force measurement using load cells and strain gauge sensors. It is widely used in digital weighing scales, smart measurement systems, and IoT-based automation projects where accuracy, stability, and reliability are essential.

The HX711 Weighing Sensor Module integrates a low-noise programmable gain amplifier and a high-resolution ADC, allowing it to measure extremely small voltage changes produced by load cells. These tiny signals are amplified and converted into stable digital values that can be easily processed by microcontrollers such as Arduino, ESP32, ESP8266, Raspberry Pi, and STM32.

---

HX711 Weighing Sensor Module Features

The HX711 Weighing Sensor Module offers powerful features that make it an ideal choice for precision weight measurement applications:

• 24-bit high-resolution ADC for accurate and stable readings

• Designed specifically for load cells and strain gauge sensors

• Dual-channel differential inputs (Channel A and Channel B)

• Programmable gain amplifier with gain options of 32, 64, and 128

• Simple 2-wire digital interface using DATA and CLOCK pins

• Low power consumption suitable for battery-powered systems

• Excellent noise immunity and long-term measurement stability

These features allow the HX711 Weighing Sensor Module to deliver professional-grade performance in both commercial and DIY electronics projects.

---

How the HX711 Weighing Sensor Module Works

The HX711 Weighing Sensor Module works by reading the very small voltage changes generated by a load cell when force or weight is applied. Load cells typically use a Wheatstone bridge configuration made of strain gauges. When weight is applied, the resistance of the strain gauges changes slightly, producing a small differential voltage.

This weak signal is amplified by the built-in programmable gain amplifier inside the HX711 Weighing Sensor Module. The amplified signal is then converted into a 24-bit digital value, which is transmitted to a microcontroller through a simple two-wire interface. After calibration, the system converts the digital output into accurate weight readings such as grams or kilograms.

---

Interfacing HX711 Weighing Sensor Module with Arduino and ESP32

One of the biggest advantages of the HX711 Weighing Sensor Module is its ease of interfacing with popular microcontrollers. The module does not require complex communication protocols like SPI or I²C. Instead, it uses a simple two-wire digital interface, making wiring clean and reliable.

Numerous open-source libraries are available for Arduino and ESP32, which simplifies development and calibration. Because of its low power consumption, the HX711 Weighing Sensor Module is also suitable for battery-powered and IoT-based applications.

Accuracy and Stability of HX711 Weighing Sensor Module

The HX711 Weighing Sensor Module provides excellent accuracy and repeatability when properly calibrated. Its high resolution and low noise design ensure stable readings even in environments with electrical interference.

Power Consumption of HX711 Weighing Sensor Module

With support for low-power operation, the HX711 Weighing Sensor Module is ideal for portable devices, smart scales, and energy-efficient IoT systems.

---

HX711 Weighing Sensor Module Applications

The HX711 Weighing Sensor Module is used in a wide range of real-world applications, including:

• Digital weighing scales

• Smart weighing machines

• Industrial weight measurement systems

• IoT-based load monitoring

• Smart agriculture and grain weighing

• Inventory and material management systems

• DIY electronics and educational projects

Its reliability and precision make it suitable for both professional products and learning environments.

---

Technical Specifications of HX711 Weighing Sensor Module

• ADC Resolution: 24-bit

• Input Type: Differential

• Channels: 2 (A & B)

• Gain Options: 32 / 64 / 128

• Operating Voltage: 2.6V to 5.5V

• Interface: 2-wire digital (DATA, CLOCK)

• Sampling Rate: 10Hz or 80Hz

• Compatible Sensors: Load cells, strain gauges

---

Why Choose the HX711 Weighing Sensor Module?

The HX711 Weighing Sensor Module is trusted worldwide due to its accuracy, stability, and ease of use. It offers professional-grade performance at an affordable price, making it a preferred choice for engineers, hobbyists, and educators. Whether you are building a smart weighing scale, an IoT monitoring system, or an industrial measurement solution, this module delivers consistent and reliable results.

---

Important Note

The HX711 Weighing Sensor Module is not a weight sensor by itself. A compatible load cell is required for weight measurement, and proper calibration is necessary to achieve accurate results.
