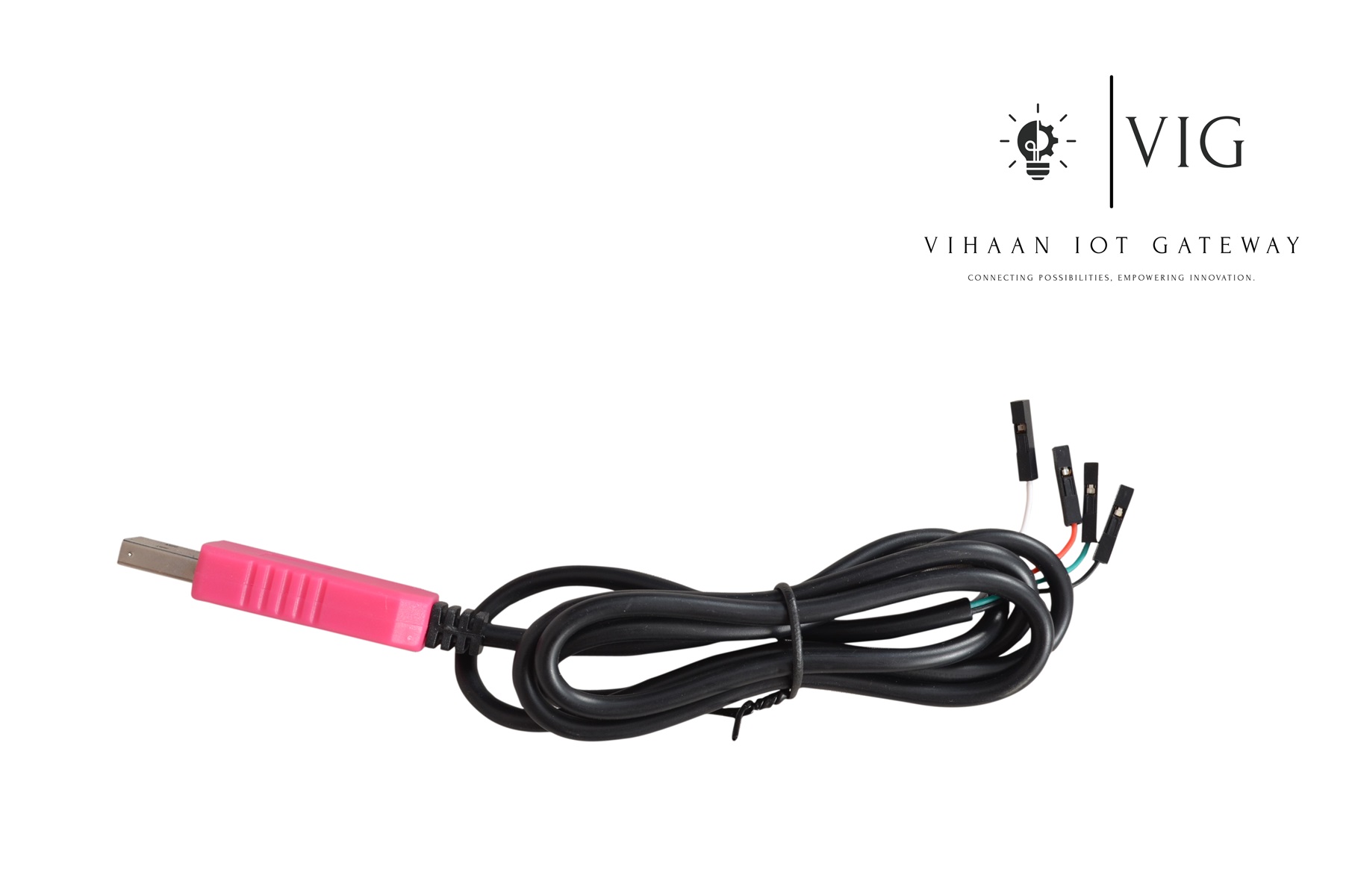

CP2102 USB to TTL Converter – 4-Pin

Description

CP2102 USB to TTL Converter – 4-Pin (3.3V/5V)

The CP2102 USB to TTL Converter is an essential tool for anyone working with embedded systems and microcontroller-based projects. This compact and efficient 4-pin version enables seamless serial communication between your computer and a wide range of microcontroller platforms such as ESP8266, ESP32, Arduino Pro Mini, and other TTL-compatible devices. Whether you’re flashing firmware, debugging your projects, or establishing a serial connection, this converter is designed to provide reliable and hassle-free performance.

Key Features:

• 4-Pin Simplicity: This adapter offers an easy-to-use, minimalist design, featuring four essential pins – VCC, GND, TXD, and RXD – for quick and convenient connections. This simplicity makes it an excellent choice for both beginners and experienced engineers working on microcontroller-based projects.

• 3.3V/5V Compatibility: The CP2102 is versatile, supporting both 3.3V and 5V logic levels (depending on your setup), ensuring that it can be used with a wide variety of devices and platforms. You can easily adjust the voltage level for your specific needs.

• Fast Communication Speeds: Capable of communicating at baud rates up to 1 Mbps, this converter ensures fast and reliable data transmission, which is perfect for programming microcontrollers, debugging, or even communicating with other TTL-based components.

• Compact and Portable Design: The small form factor of the CP2102 USB to TTL Converter is perfect for integrating into breadboard setups, development kits, or embedded projects. Its portability makes it a must-have for hobbyists, students, and professionals on the go.

• Wide Compatibility: The CP2102 works seamlessly with a variety of platforms, such as ESP8266, ESP32, Arduino (Pro Mini), STM32, and other devices that require a USB-to-TTL connection. It is also compatible with many popular operating systems, including Windows, Linux, and macOS, making it a universal tool for your development needs.

Applications:

• Firmware Flashing: Quickly and easily flash firmware to devices like ESP8266, ESP32, and Arduino Pro Mini, which do not have built-in USB connectivity.

• Serial Communication and Debugging: Ideal for setting up serial communication between your computer and microcontroller-based devices. It’s perfect for debugging, monitoring data, and testing new software and hardware setups.

• Console Access: Use it to access and control devices such as routers, modems, or embedded systems that rely on a TTL serial console for management and troubleshooting.

• IoT and Embedded Systems Projects: Whether you’re building custom IoT devices, robotics systems, or home automation tools, this converter will allow you to communicate with your microcontroller and manage your projects more effectively.

Pinout:

• VCC: Power output for your device. Supports either 3.3V or 5V output, depending on jumper settings, making it flexible for various applications.

• GND: Common ground to ensure proper signal transmission.

• TXD: Transmit data. Connect this pin to the RXD pin on your device.

• RXD: Receive data. Connect this pin to the TXD pin on your device.

Why Choose the CP2102 USB to TTL Converter?

• Cost-Effective Solution: The CP2102 provides an affordable and reliable way to set up USB-to-TTL connections for your projects, without the need for expensive or complicated programming tools.

• High Reliability: Built with high-quality components, the CP2102 ensures stable performance during firmware flashing, debugging, and real-time communication.

• Ease of Use: The simplicity of the 4-pin configuration means you won’t need to deal with complicated jumper settings or unnecessary components. Just plug it in, connect your device, and you’re ready to go.

Perfect for Developers, Hobbyists, and Educators:

• Whether you’re a seasoned developer working on custom embedded systems, a hobbyist building IoT gadgets, or an educator teaching students about microcontroller programming, the CP2102 USB to TTL Converter will be a valuable addition to your toolkit. Its ease of use, compact size, and versatile compatibility make it an essential tool for a wide range of applications.

---

With the CP2102 USB to TTL Converter, you’ll be able to bridge the gap between your USB port and TTL-based devices with ease and efficiency. This 4-pin converter simplifies serial communication, allowing you to focus on the development and debugging of your projects, whether you’re working on a DIY IoT solution, a home automation project, or an educational experiment.
