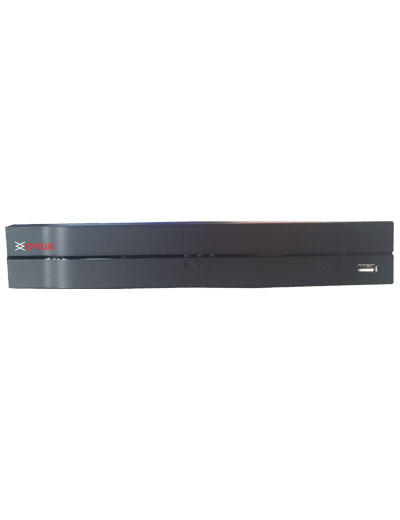

CP PLUS Embedded NVR CP-UNR-104F1 – 4CH, H.265+, 80Mbps Throughput

Description

CP PLUS CP-UNR-104F1 – 4-Channel Embedded IP NVR with H.265+ Compression and 8MP Camera Support

The CP PLUS CP-UNR-104F1 is a powerful and efficient 4-channel NVR engineered to deliver high-performance IP surveillance in compact installations. Supporting up to 4 IP cameras with resolutions up to 8MP, this embedded NVR is ideal for residential, small commercial, retail, or office environments where reliability, scalability, and bandwidth optimization are critical.

Equipped with advanced H.265, Smart H.264+, and InstaStream compression technologies, the CP-UNR-104F1 significantly reduces bandwidth and storage consumption while maintaining high-definition video clarity. It offers a maximum incoming bandwidth of 80 Mbps, ensuring stable recording and playback of multiple high-resolution streams simultaneously.

With HDMI and VGA outputs, users can connect directly to a monitor for live view or playback without requiring a separate client. The NVR supports a single SATA HDD up to 8TB, providing long-term archival capabilities. Explore our collection of compatible surveillance hard drives to complete your setup.

Remote access is seamless through the iCMOB/gCMOB mobile apps and KVMS Pro desktop CMS, offering real-time monitoring and playback over secure connections. The unit supports all major networking protocols and is ONVIF-compliant, allowing integration with a wide range of IP cameras from CP PLUS and other brands.

Designed for easy deployment, this NVR comes in a compact form factor and is powered by a 12V DC supply. With built-in features like motion detection, tamper alarms, video loss alerts, and event-based recording, the CP-UNR-104F1 is a dependable surveillance solution for professionals.

---

🔍 Technical Highlights

• Model: CP-UNR-104F1

• Video Input: 4 IP channels

• Max Resolution: Up to 8MP

• Compression: H.265 / Smart H.264+ / InstaStream

• Max Bandwidth: 80 Mbps

• Output: HDMI + VGA (up to 1080p)

• Storage: 1 × SATA (up to 8TB) – See compatible HDDs

• USB Ports: 2 × USB 2.0

• Network: RJ-45 (10/100 Mbps)

• ONVIF: Profile S/T/G supported – View ONVIF IP Cameras

• Playback: 4-channel synchronous

• Remote Access: iCMOB, gCMOB, KVMS Pro

• Power: DC 12V/1.5A

• Chassis: Desktop form factor

• Temperature Range: -10°C to +45°C

---

🛠 Ideal Applications

• Home Security Systems

• Retail Store Surveillance

• Office & Startup Monitoring

• Small Warehouses & Workshops

---
